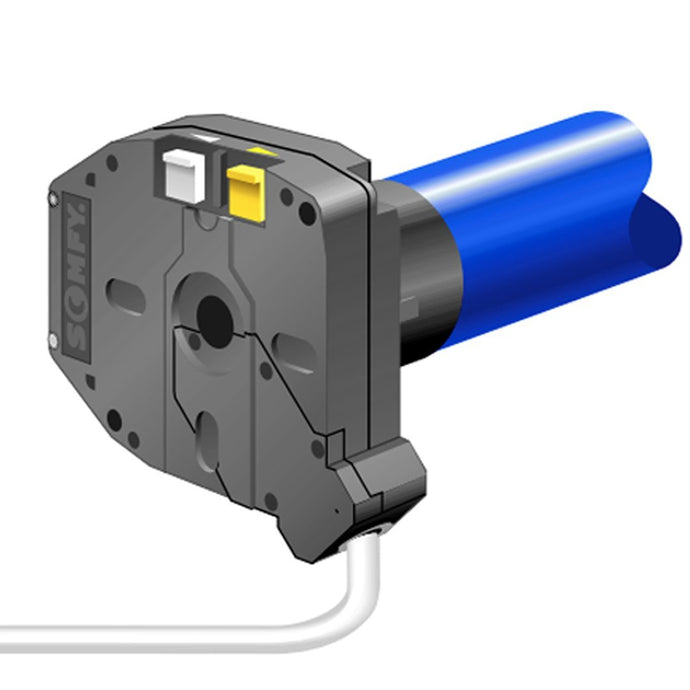

Somfy 660R2 CMO Tubular Motor LT60 60NM 14RPM 120V (1162036)

Quantity must be 1 or more
Vendor
Security Shutter Ltd.
Regular price
$934.44
Sale price
$934.44
Shipping calculated at checkout.

Somfy 660R2 CMO standard LT60 tubular motor is engineered to perfection. Durability and reliability combined with ultra quite operation gives you the best automation solution available to date. These motors allow the user to operate the system with a wired wall switch or a key switch. Essentially used for storefront applications and over entry doors or emergency access windows.

Crank manual override (CMO), allows users to operate the motorized shutter manually in case of power outage.

Designed for 70mm octagonal shafts.

Are you upgrading to a motorized roll shutter or need a replacement tubular motor? Have Questions?

Call us a call anytime 24/7: (866) ROLL-DOOR / (866) 765-5366



  • Control options are hard wired wall mounted switches and sensors.
  • Star shaped tubular motor head.
  • Heroal motor mount sold separately.
  • Octagonal 60mm or 70mm crown and drive accessories sold separately.



Somfy 660R2 CMO Specs:

    • Crank Manual Override
    • Torque 60 Nm
    • Speed 14 rpm
    • Voltage 120V
    • Frequency 60Hz
    • Protection Index - IP 44
    • Electrical Maximum Voltage 126 V Minimum voltage 108 V
    • Nominal Voltage / Frequency 120V - 60Hz
    • Mechanical Capacity of the limit switch unit 46 turns
    • Push button limit switches ( White & Yellow )
    • White 4 Wire cable @ 6 ft length
    • Wire section AWG 18mm
    • Cable type VVF
    • Tubular motor weight 9.5 LBS
    • Thermal overload protection timer - 5 min
    • Working temperature 14°F - 104 °F
